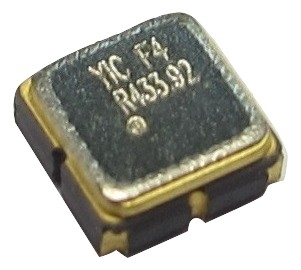

Saw Resonator

Saw Resonator
Saw Resonator
Product Code : SR-14
Brand Name : YUECHUNG INTERNATIONAL
Product Description

Owing to our vast industry experience, we are engaged in manufacturing and supplying an extensive array of Saw Resonator. These filters are ideal for many consumer, industrial, and military applications in signal selection and frequency control. Before the final dispatch, our quality analysts test these on durability and performance parameters to ensure their flawlessness at clients' end. The entire range of Saw Resonator  is manufactured at our contemporary production unit with the help of premium quality components that are obtained from reliable vendors of the industry.

Features:

  • Easy installation
  • Optimum tensile strength
  • Corrosion proof

Technical Specification :

Model

Product Type

Package

Frequency

M/KHZ

Pole

Pass. Bandwidth(KHz/dB)

Attenuation Bandwidth(KHz/dB)

Stop Bandwidth(KHz/dB)

Pass Band Ripple (dB)

Impedence
(Kohm/pF)

Temp. Range
(oC)

SM756

MCF SMD

7 x5x1.3mm

21.4 ~ 45

MHz

2

3.5-15/3

-910/70

25-125/15~20

0.5-1.0

0.35-1.5/
1.8-6.0

-20~70

MCF

MCF DIP

HT49U/HT49T/
HT49TX2/HT49TX3/
UM1/5/UM1/5X2
38x19x12.7mm/
12x9.5x13.5mm/
12x9.5x15mm/
15x9.0x13.5mm/
15x9.0x15mm

8 ~ 17.9

MHz

2~8

3.75-28/3

15-33/18~80

----

0.5 ~ 2.0

1.05~3/
0~5

-20~70

MCF

MCF DIP

UM1/5/UM1/5X2
11x8.5x12mm/
13.4x8.5x12mm

21 ~ 75

MHz

2~8

3.75-10/3

14-35/18~80

----

0.5 ~ 2.0

0.9~5/
0~5

-20~70
