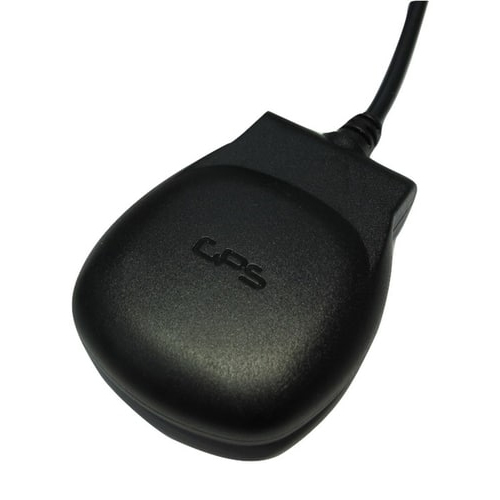

GPS/GNSS Receiver G-Mouse

GPS/GNSS Receiver G-Mouse
GPS/GNSS Receiver G-Mouse
Product Code : YIC_GPS
Brand Name : YIC
Product Specifications
  • Type
  • GPS Receiver
  • Usage
  • automotive, hand held and others
  • Dimensions
  • 49.7*39.5 to 47.2*37 Millimeter (mm)
  • Weight
  • 80 Kilograms (kg)
  • GPS Accuracy
  • Horizontal Position: autonomous<2.5m average
  • GPS Sensitivity
  • -161 db
Trade Information
  • Minimum Order Quantity
  • 100
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Telegraphic Transfer (T/T), Paypal
  • Delivery Time
  • 4 to 6 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples available with shipping and taxes paid by the buyer
  • Packaging Details
  • Normal
  • Main Export Market(s)
  • Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO-9001: 2008, ISO-14001: 2004, D&B Duns, TUV Rheinland
Product Description

In order to fulfill the demands of telecom industry, we are engaged in manufacturing and exporting a wide range of GPS/GNSS Receiver (G-Mouse). Offered product is a flexible positioning solution for accurate and productive GPS data collection. This product process the signals available in space which are transmitted by the satellites. While designing this mouse according to the international quality standards, our skilled personnel team use high quality components that are obtained from certified vendors of the industry. The entire range of GPS/GNSS Receiver (G-Mouse) is offered by us in plethora of sizes and specifications as demanded by our valuable patrons.



Features:

  • High performance and low power consumption GNSS Chipset

  • High sensitivity

  • Interface support: UART/TTL, RS232, USB



Technical Specification :



UART/TTL Interface

ModelDimension(mm)VCC(V)ChipsAdditional LNA/SAWMount
GPS93030Sxx 50.08 x 39.5 x 19.5(H) 3.3/5.0 u-bloxV Adhesive & Magnetic
GPS53030Sxx 50.08 x 39.5 x 19.5(H) 3.3/5.0 MTKV Adhesive & Magnetic
GT-901xx 47.1 x 36.9 x 12.5(H) 3.3/5.0 u-bloxV Adhesive
GT-801xx 47.1 x 36.9 x 12.5(H) 3.3/5.0 RealtekV Adhesive

RS232 Interface

 Model Dimension(mm) VCC(V) Chips Additional LNA/SAW Mount
 GR93030Sxx 50.08 x 39.5 x 19.5(H) 3.3/5.0  u-blox V Adhesive & Magnetic

 USB Interface

 Model  Dimension(mm) VCC(V) Chips  Additional LNA/SAW  Mount
  GU93030Sxx 50.08 x 39.5 x 19.5(H) 5.0   u-blox  V  Adhesive & Magnetic

 "XX" : 1. Blank : GPS 2. GG : GPS & GLONASS 3. GB : GPS & BEIDOU
