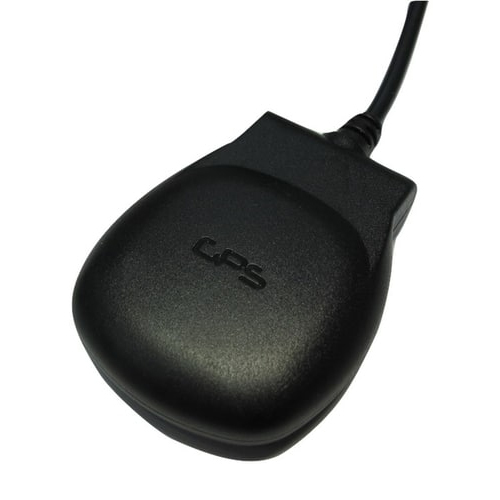

GPS GNSS Mouse Receiver

GPS GNSS Mouse Receiver
GPS GNSS Mouse Receiver
Product Code : YIC_GPS
Brand Name : YIC
Price And Quantity
  • Minimum Order Quantity
  • 100
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Type
  • GPS Receiver
  • Usage
  • automotive, hand held and others
  • Dimensions
  • 49.7*39.5 to 47.2*37 Millimeter (mm)
  • Weight
  • 80 Kilograms (kg)
  • GPS Accuracy
  • Horizontal Position: autonomous<2.5m average
  • GPS Sensitivity
  • -161 db
Product Description
In order to fulfill the demands of telecom industry, we are engaged in manufacturing and exporting a wide range of GPS GNSS Receiver (G-Mouse). Offered product is a flexible positioning solution for accurate and productive GPS data collection. This product process the signals available in space which are transmitted by the satellites. While designing this mouse according to the international quality standards, our skilled personnel team use high quality components that are obtained from certified vendors of the industry. The entire range of GPS/GNSS Receiver (G-Mouse) is offered by us in plethora of sizes and specifications as demanded by our valuable patrons.

Features:
  • High performance and low power consumption GNSS Chipset
  • High sensitivity
  • Interface support: UART/TTL, RS232, USB

Technical Specification :

UART/TTL Interface

Model Dimension(mm) VCC(V) Chips Additional LNA/SAW Mount
GPS93030Sxx  50.08 x 39.5 x 19.5(H)  3.3/5.0  u-blox V  Adhesive & Magnetic
GPS53030Sxx  50.08 x 39.5 x 19.5(H)  3.3/5.0  MTK V  Adhesive & Magnetic
GT-901xx  47.1 x 36.9 x 12.5(H)  3.3/5.0  u-blox V  Adhesive
GT-801xx  47.1 x 36.9 x 12.5(H)  3.3/5.0  Realtek V  Adhesive

RS232 Interface

 Model  Dimension(mm)  VCC(V)  Chips  Additional LNA/SAW  Mount
 GR93030Sxx  50.08 x 39.5 x 19.5(H)  3.3/5.0   u-blox  V  Adhesive & Magnetic

USB Interface

 Model   Dimension(mm)  VCC(V)  Chips   Additional LNA/SAW   Mount
  GU93030Sxx  50.08 x 39.5 x 19.5(H) 5    u-blox   V   Adhesive & Magnetic

 "XX" : 1. Blank : GPS 2. GG : GPS & GLONASS 3. GB : GPS & BEIDOU


Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T), Paypal
  • Delivery Time
  • 4 to 6 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples available with shipping and taxes paid by the buyer
  • Packaging Details
  • Normal
  • Main Export Market(s)
  • Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO-9001: 2008, ISO-14001: 2004, D&B Duns, TUV Rheinland
