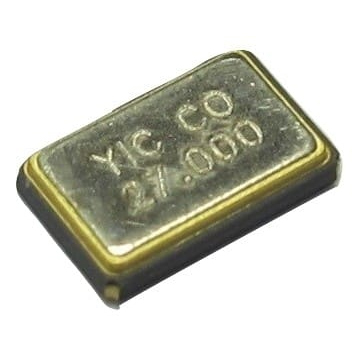

Crystal Oscillator

Crystal Oscillator
Crystal Oscillator
Product Code : OSC
Brand Name : YIC
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Reel
  • Price Range
  • -
Product Specifications
  • Input
  • 5, 3.3, 2.8, 2.5, 1.8 (Vdd)
  • Product Type
  • Oscillator
  • Application
  • IoT, telecom, computer, wireless, bluetooth
  • Supply Voltage
  • 5, 3.3, 2.8, 2.5, 1.8 Watt/Volt ( w/v)
  • Dimension(L*W*H)
  • 2*1.6, 2.5*2, 3.2*2.5, 5*3.2, 7*5 Millimeter (mm)
  • Function
  • Frequency control
  • Color
  • silver
  • Warranty
  • 1 year
Product Description

Being certified with ISO-9001:2008 and ISO-14001:2004, we are dedicated towards manufacturing and supplying a perfect range of Crystal Oscillator. Our offered product uses the mechanical resonance of a vibrating crystal of piezoelectric material for creating an electrical signal at a very precise frequency. Our well trained personnel team uses quality approved components that are procured form authorized vendors of the market. Offered Crystal Oscillator is offered in different specifications at reasonable prices.

Key Features:

  • High performance
  • Compact design
  • Optimum strength


Technical Specification :

SPXO

 Model Dimension (mm) Frequency Range (Mhz)
 OSC-S21  2.0 x 1.6 x 0.75(H)  1~50, 0.032768
 OSC-S22 2.5 x 2.0 x 0.95(H) 1~50, 0.032768
 OSC-S33.2 x 2.5 x 1.2(H)  1~160, 0.032768
 OSC-S55.0 x 3.2 x 1.3(H)  0.5~160, 0.032768
 OSC-S7 7.0 x 5.0 x 1.4(H)  0.5~160, 0.032768

LVDS

 Model Dimension (mm) Frequency Range (Mhz)
OSCLD-S33.2 x 2.5 x 1.2(H) 15~160
OSCLD-S55.0 x 3.2 x 1.3(H)15~160
OSCLD-S77.0 x 5.0 x 1.4(H)15~200

LVPECL

 Model Dimension (mm) Frequency Range (Mhz)
OSCLP-S33.2 x 2.5 x 1.2(H) 15~160
OSCLP-S55.0 x 3.2 x 1.3(H)15~160
OSCLP-S77.0 x 5.0 x 1.4(H)15~200

VCXO, TCXO, VCTCXO, OCXO

ModelDimension(mm) / PackageFrequency Range (Mhz)
VX

SMD: 756, 534, 536, 324, 326

TH: F, H

1~200
TX & VTX

SMD: 11106, 11104, 754, 534, 324

TH: 1812, 2013, 1313

1~150
OXTH: 52517, 39394, 36274, 36275, 25255, 20204, 201341~170

Trade Information
  • Payment Terms
  • Paypal, Telegraphic Transfer (T/T), Cash Advance (CA)
  • Supply Ability
  • 8Mpcs Per Month
  • Delivery Time
  • 4 to 6 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples available with shipping and taxes paid by the buyer
  • Packaging Details
  • YIC exclusive packaging
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ISO-9001: 2008, ISO-14001: 2004, D&B Duns, TUV Rheinland
